Complete Set Of Professional F1 Racing Simulators 6dof Racing Simulator Cockpit Rig 4080 Anum Profile Sim Racing Rig

Complete Set Of Professional F1 Racing Simulators 6dof Racing Simulator Cockpit Rig 4080 Anum Profile Sim Racing Rig

$11,145.99 $16,718.99
ColorBlack
Products Description

DIY 3DOF 5DOF G-force motion platform kits 750W 58mm 100mm 150mm travel cylinder with 4 in 1 MDBOX for games racing/flight Simulator


Motion simulator platforms are designed to provide real-time feedback, adding a new layer of immersion to your sim racing or flight simulation setup. Our motion simulator platforms deliver responsive movement to simulate the forces you would feel in a real vehicle, from the bumps on a racetrack to the turbulence of a flight. With advanced technology and adjustable settings, these motion platforms cater to both casual users and serious sim enthusiasts, offering the ultimate in simulation realism. Discover the power of motion simulator platforms and transform your racing or flying experience.


Parameters:
Electric cylinder speed: 500mm/s Four-axis cylinder stroke: 58mm (have option of 100mm and 150mm) Side slide electric cylinder stroke: 150mm Motor power: 750w Four bearing weight: 800KG Tail stroke: 400mm Surge stroke: 150mm
5dof, includes: heave, pitch, roll, surge, sway
Compatible with software simhub, simtool or flypt

Function:
Simulate dynamic effects such as car ups and downs, pitch, roll, sideslip, front and back, suspension adjustment is close to 8 real car effects, fast response, feedback time is similar to the steering wheel, used to experience the track can clearly feel the road material jitter, shoulder tire ups and downs, accelerating pitch, turning tail and other effects, so that the driving immersion is greatly improved.
Product Name
SimorReal aluminum profile sim racing rig cockpit
Material
Aluminum profile, aluminum CNC machining panels, powder coated metal sheet
Accessories
Black screws, nut, joint, cup holder, adjust feet, angle bracket, slider, seat bracket, wheels
Related parts

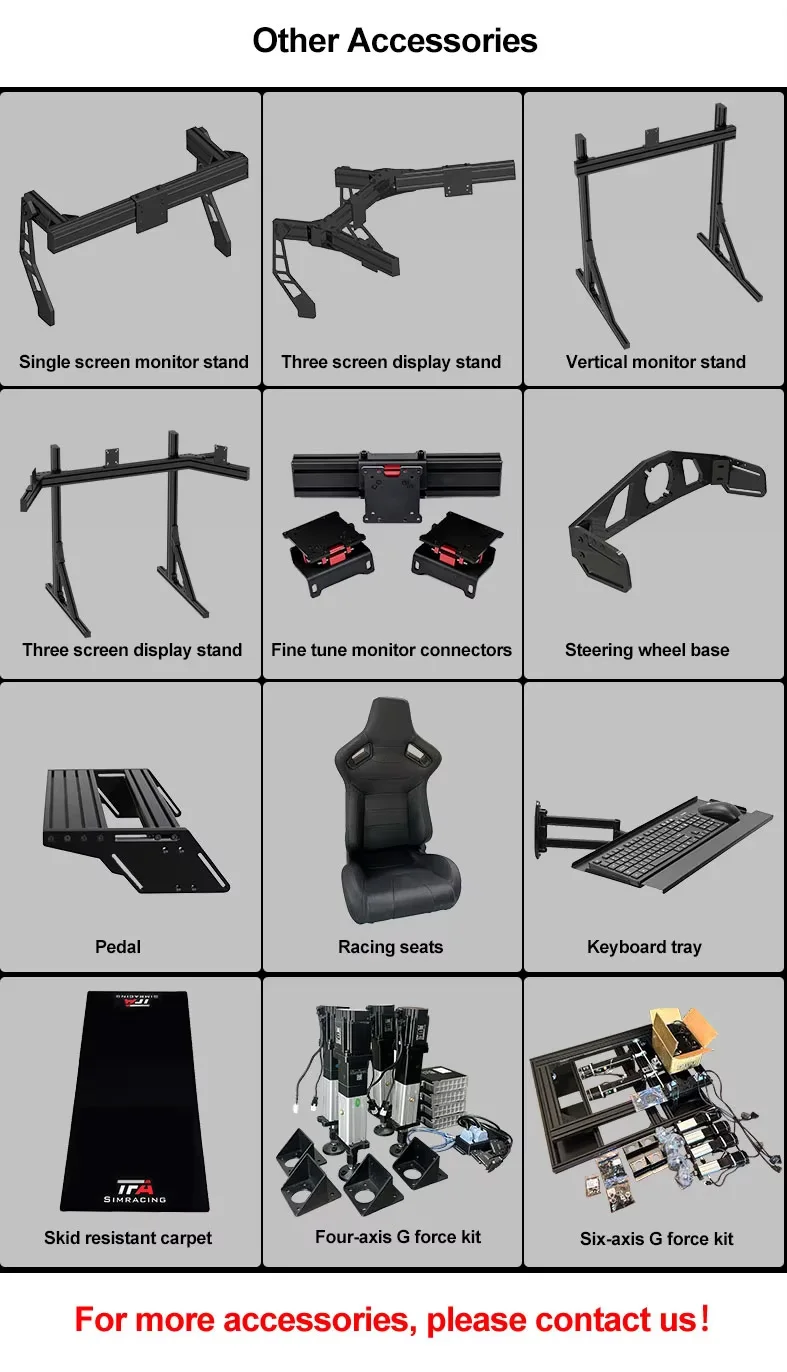

Pedal, wheel mount, mouse mount, keyboard tray, PC holder, shifter, monitor stand, vesa mount
Service
OEM, ODM available
Color
Black, Silver, Blue, Gold, Gray

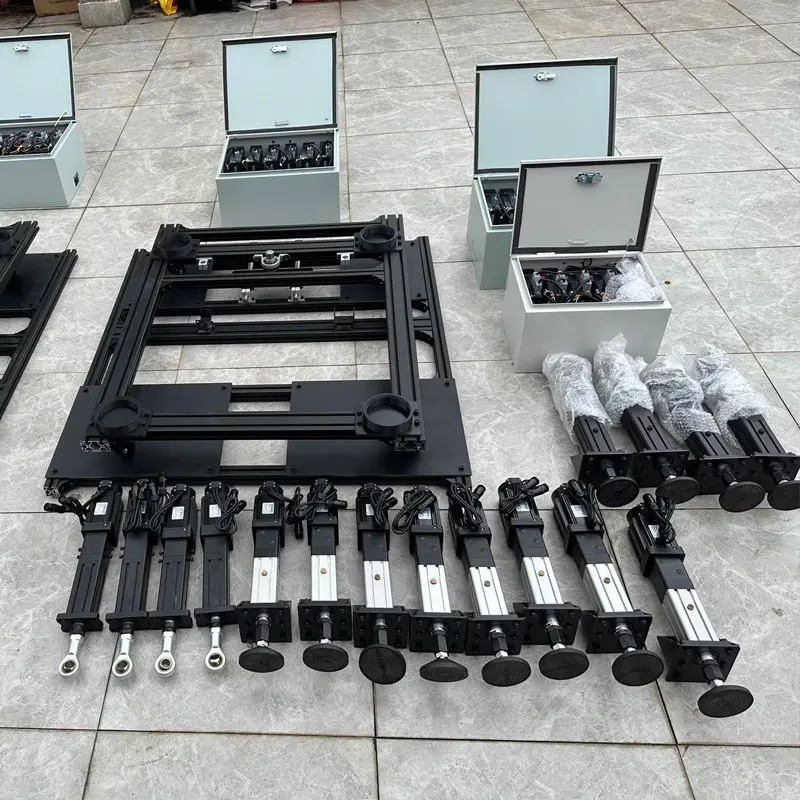

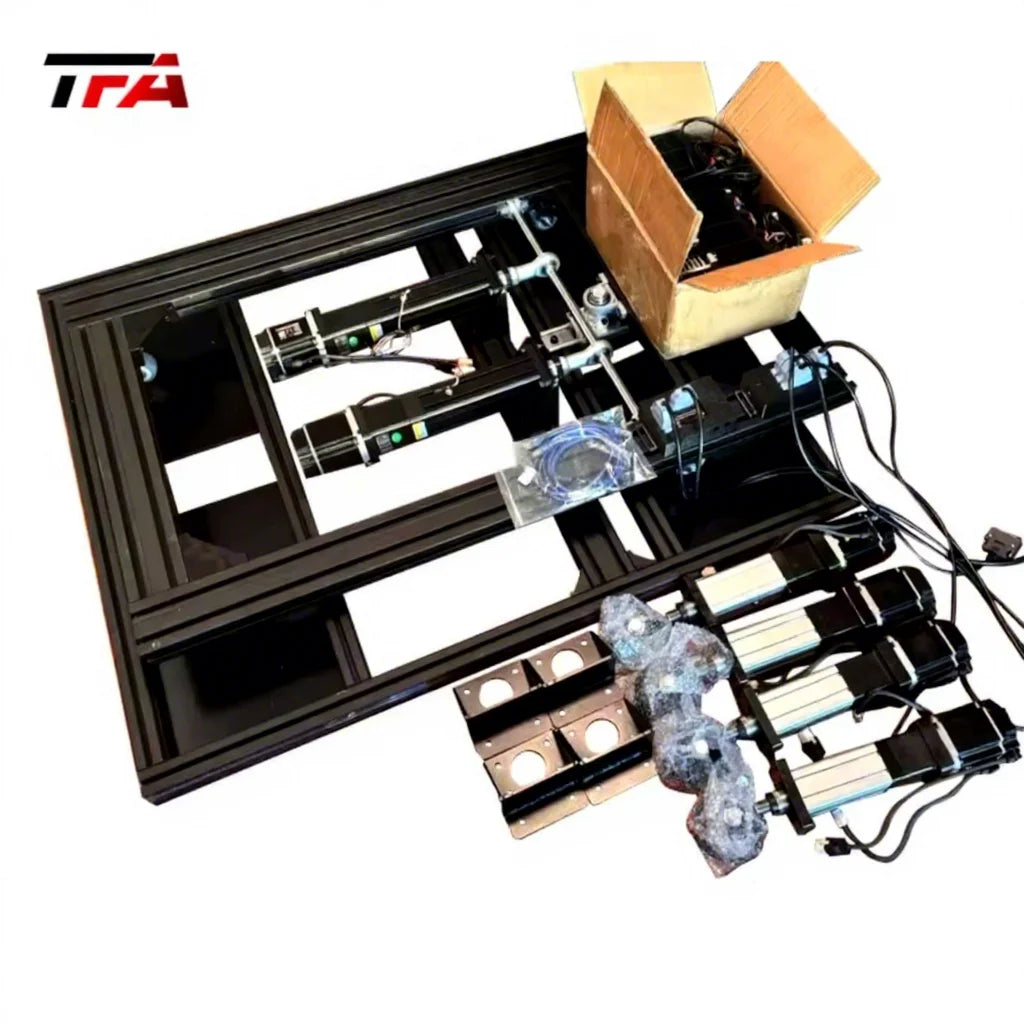

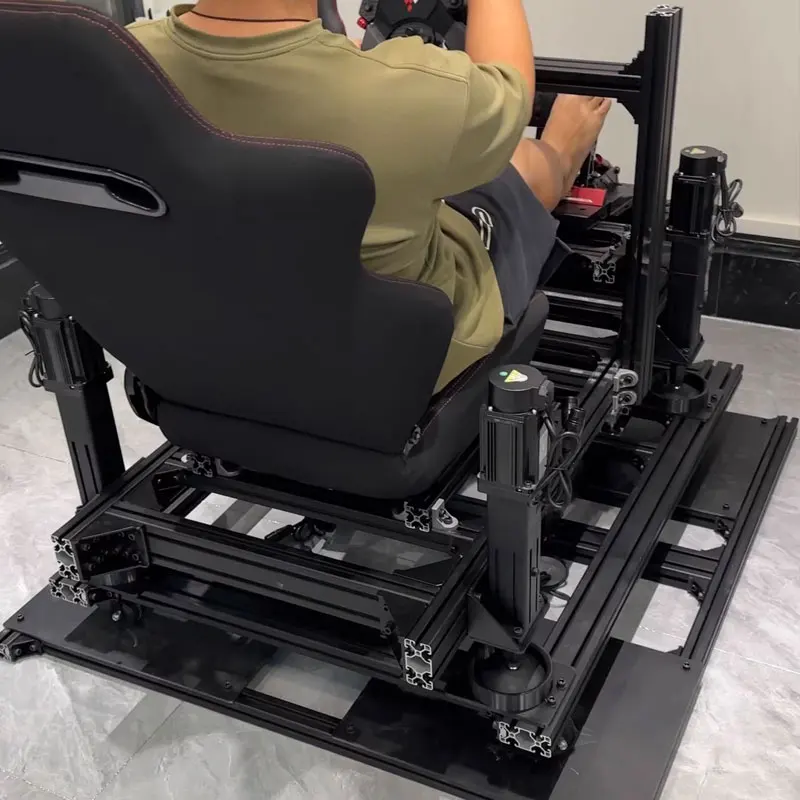

4DOF/6DOF G-force motion set

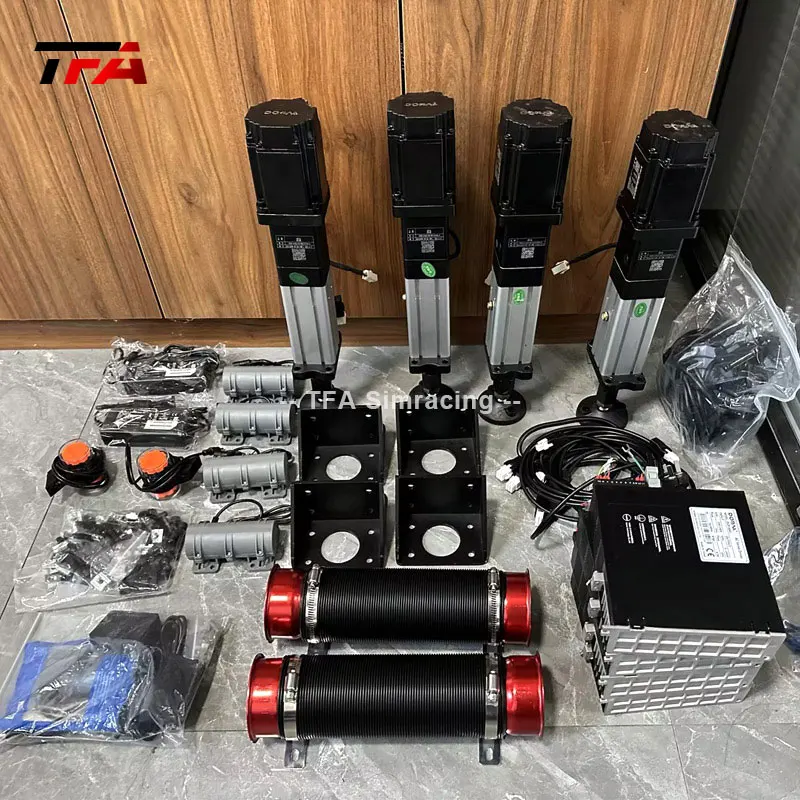

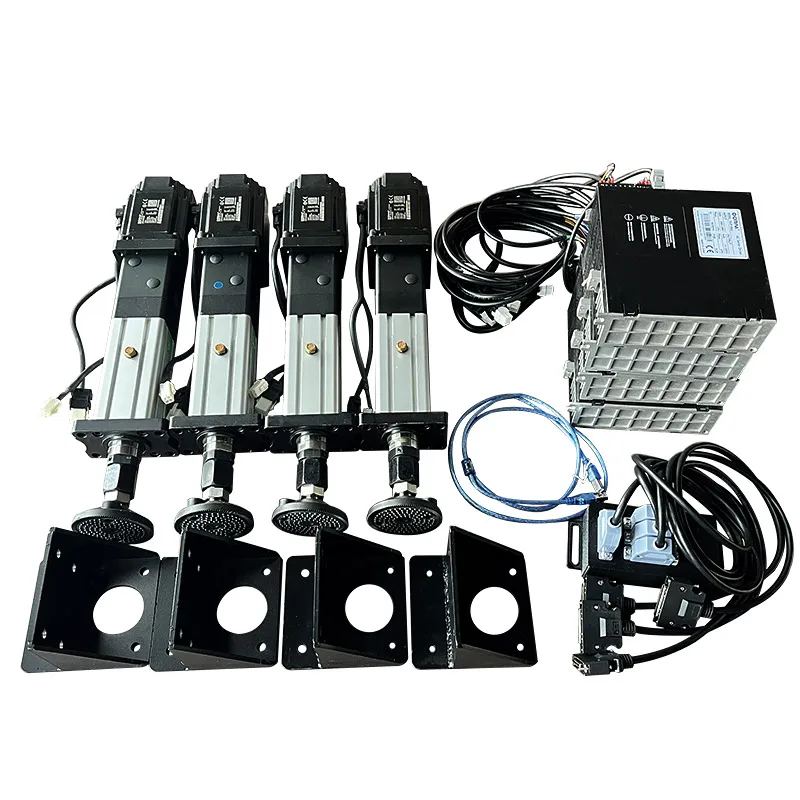

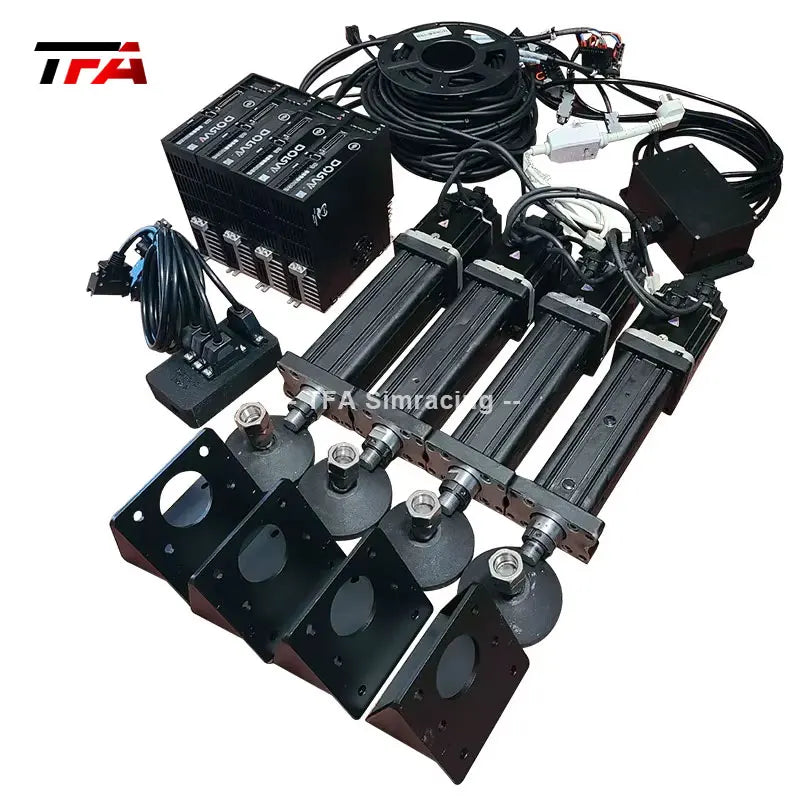

What is 4 DOF G-force included?
1. Four-axis G-force electric cylinder (including carbon steel adapter plate)
2. Four sets of industrial servo motors, servo controller
3. One four-axis controller
4. Power cable, screw accessories
5. Four-axis without traction
6. Four-axis with 3DOF motion of heave, pitch, roll
7. Cylinder speed 500mm/s, power 750W
8. Surge travel 120mm, tail stroke 400mm, Upper four-axis travel 58mm
9. Voltage 220v (110v need extra transformer)
10. Package size: 52*28*26cm * 2box
11. G.W.: 35kgs

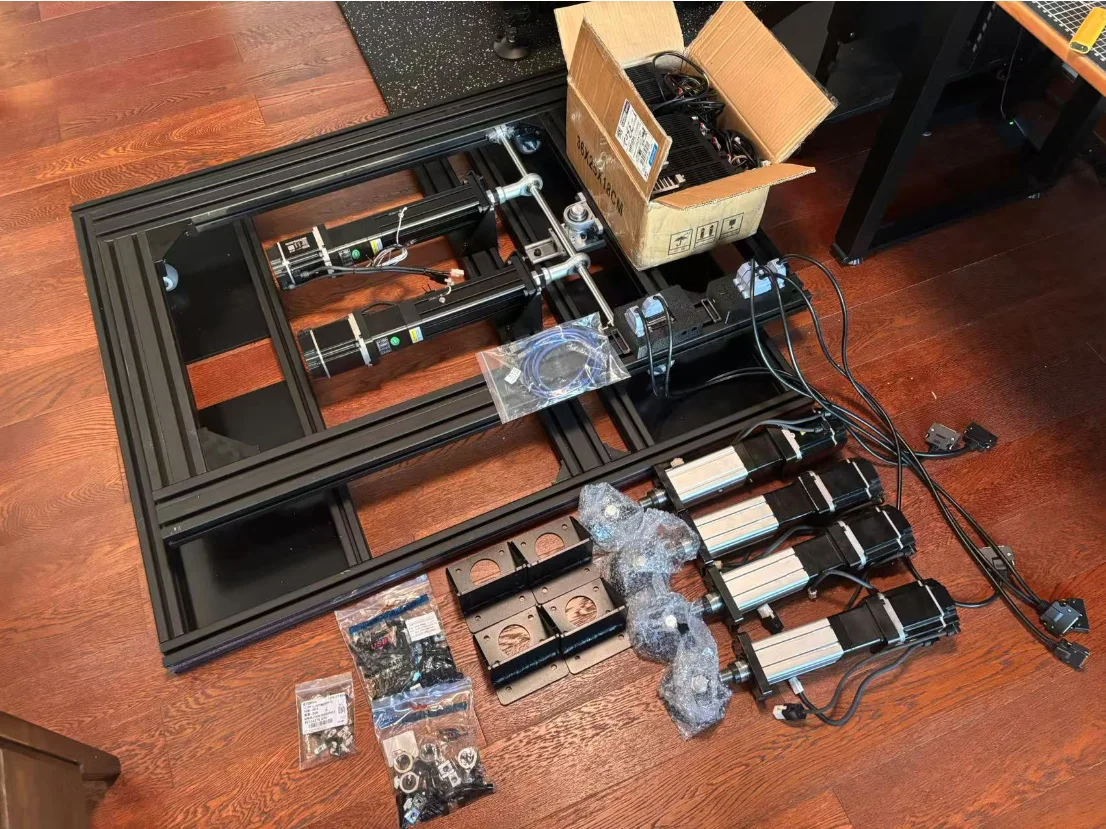

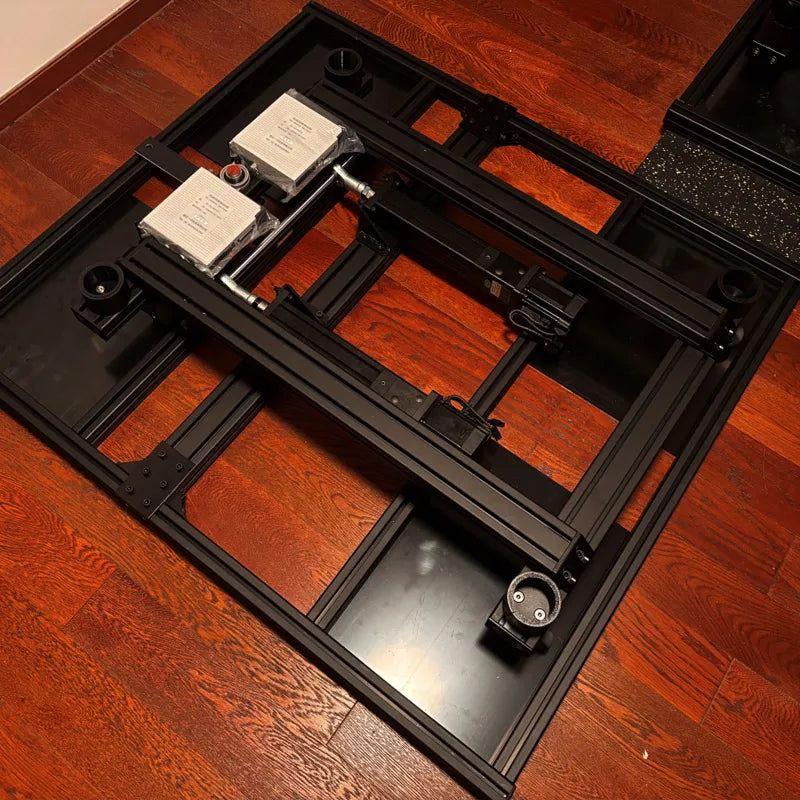

What is 6 DOF G-force included?
1. Four-axis G-force electric cylinder (including carbon steel adapter plate) 2. Four sets of servo motors, servo controller 3. One four-axis controller,one Sideslip controller 4. One Sideslip aluminum profile base (Double cylinder, double motor servo) 5. Power switch, Data cable, Power cord 6. Includes game G-force training presets and remote software teaching services 7. One-year product warranty after-sales work, can provide simulator related consulting services
8. Package: 6 cartons
9. G.W.: 95kgs

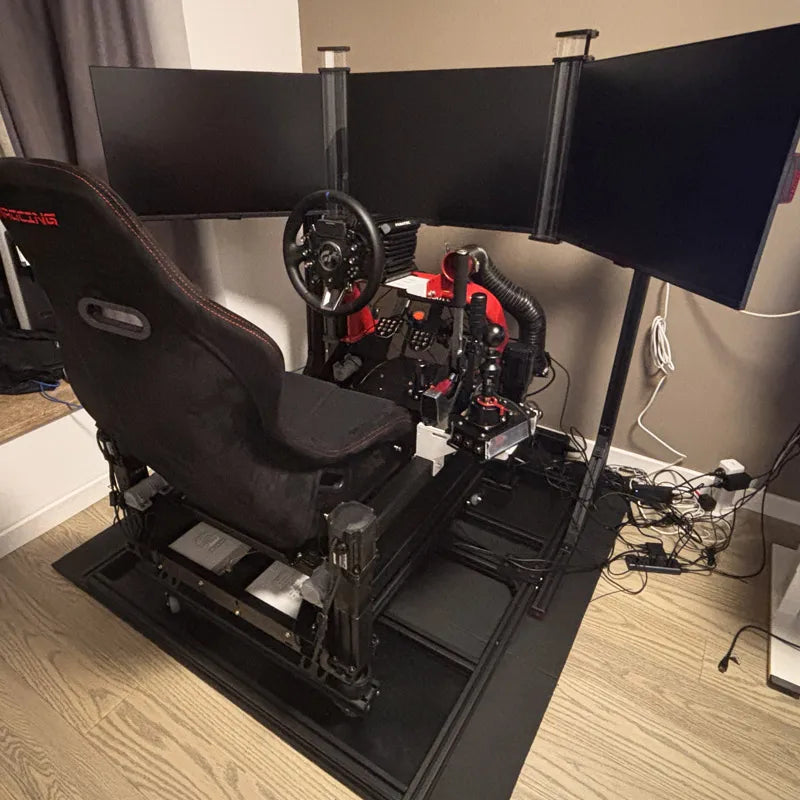

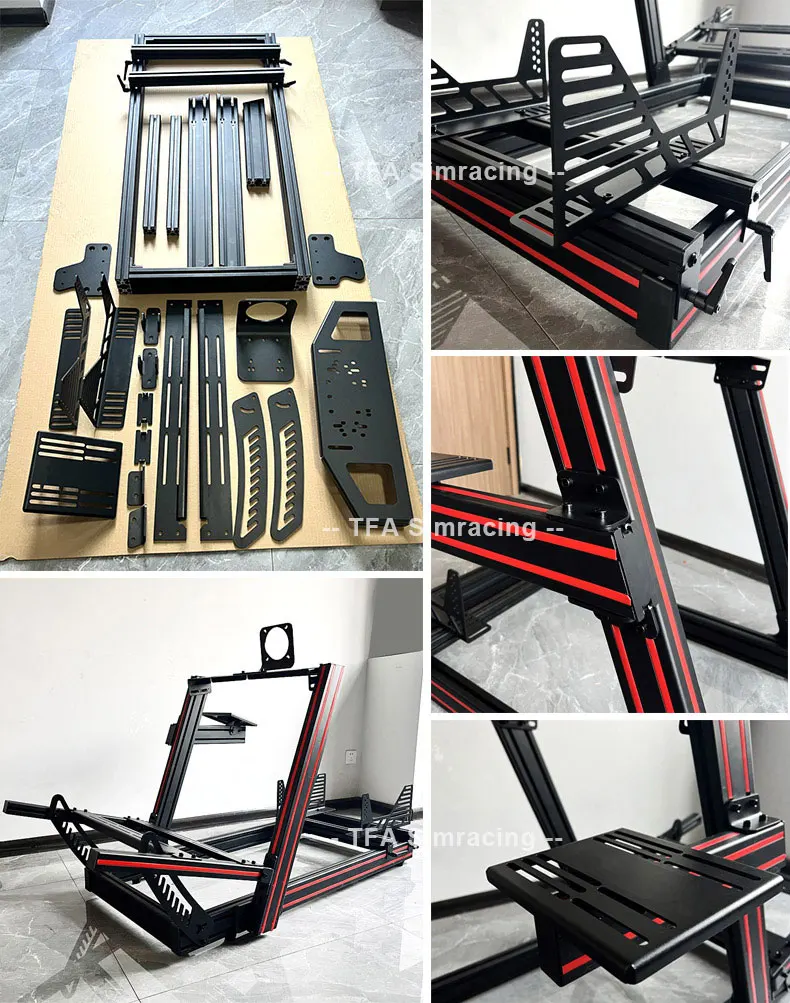

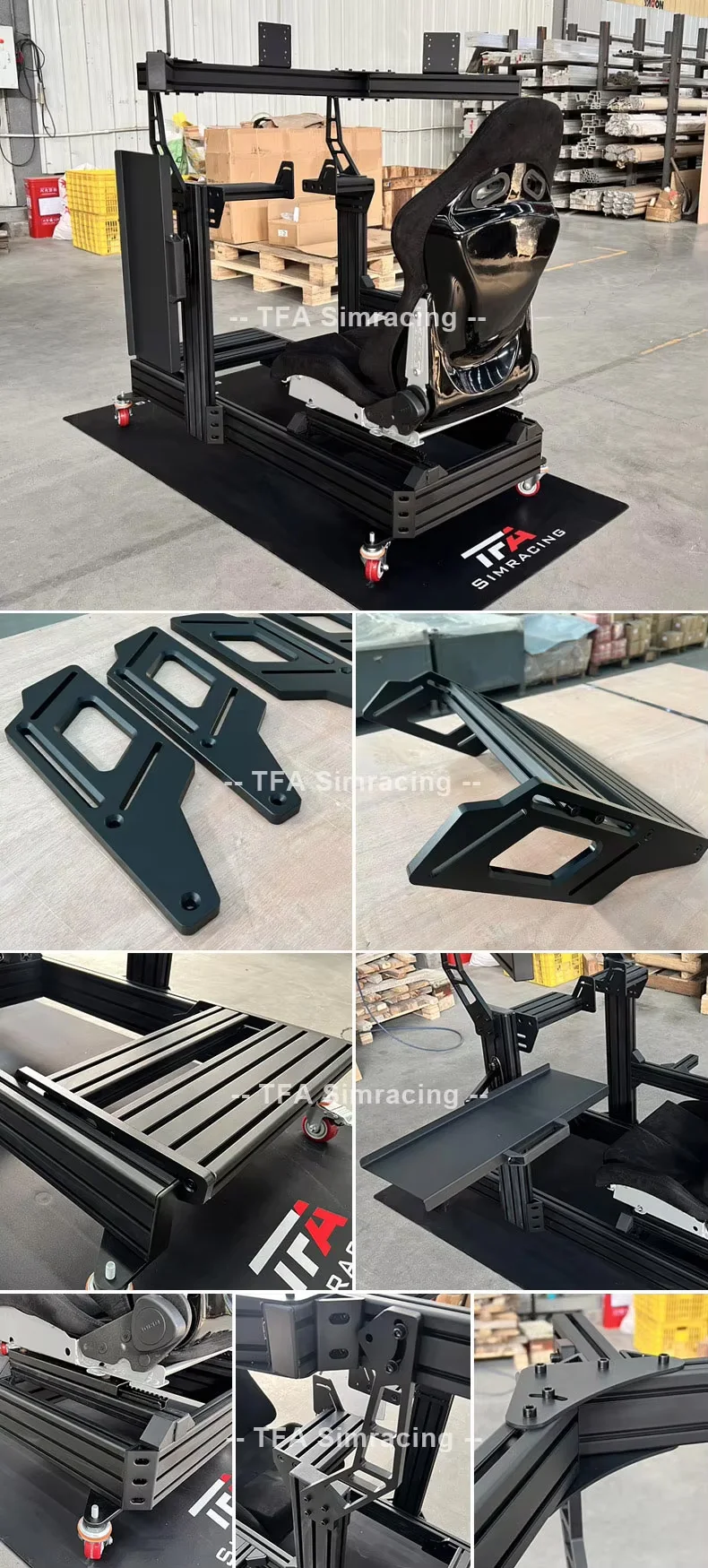

Details Images

Aluminum Profile Sim Racing Simulator Cockpit with DDP SERVICE (cover tax and duties)


Why chose aluminium profile sim racing rig?
Aluminium profile sim racing rigs is a true all in one formula/GT/Hybrid position racing cockpit pushing the boundaries of what is expected of an aluminium profile cockpit and setting a new standard for sim racing. It is among the most sturdy sim rigs available on the market. They are often used to eliminate any flexing when racing with powerful racing wheels. SimorReal sets the functionality and quality for an aluminium profile cockpit or what’s commonly referred to as an 8020 racing simulator cockpit. Sim racing with powerful direct drive wheel bases can often make sim rigs vibrate and flex during heavy use.

Does sim racing improve real driving?
Sim racing's biggest advantage is helping drivers train their minds. It is very mentally demanding. For some, it's even more
mentally demanding than real-life driving. To understand how to use it, we will first break down each of our mental states while driving.

What are the ergonomics for sim racing?
The upper back should be resting fully on the seat back while the shoulders should be 1 to 2 inches away. The distance to the steering wheel should be set by extending the arms around the side of the steering wheel and setting it so the wheel touches the arm midway between the wrist and elbow.

Welcome to figure customization, we also have professional designers to provide you with aluminum profiles and accessories selection reference.

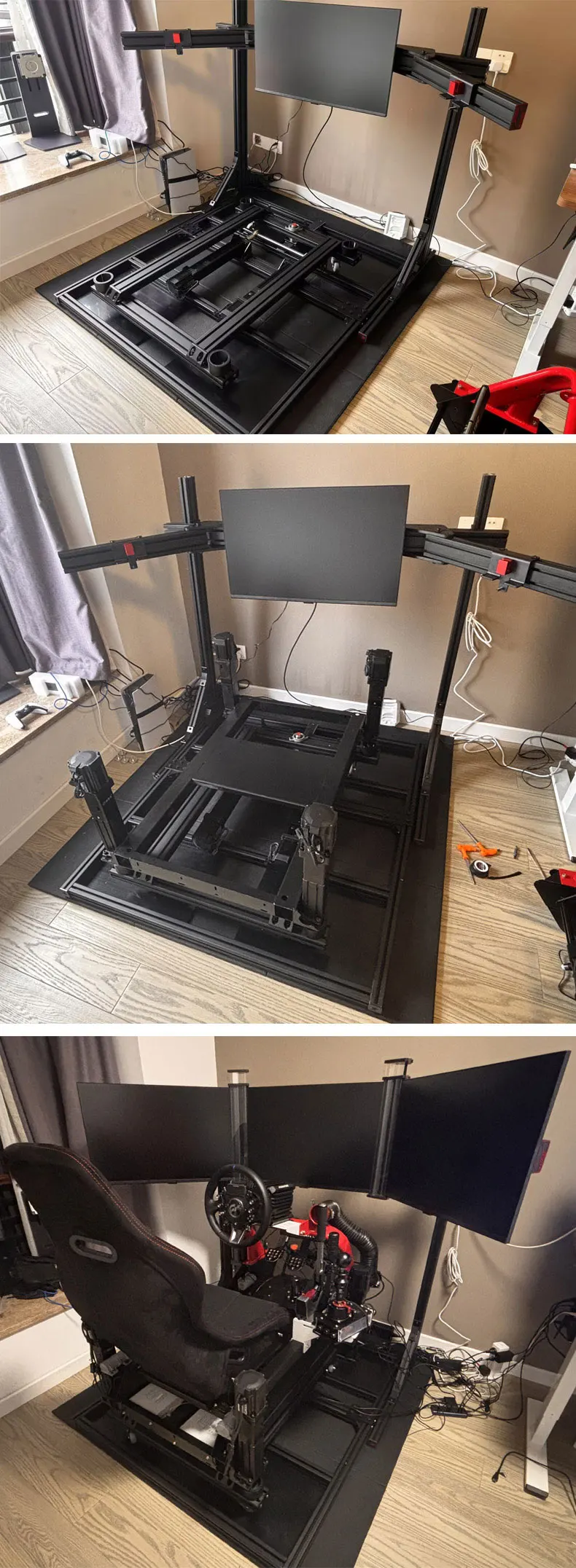

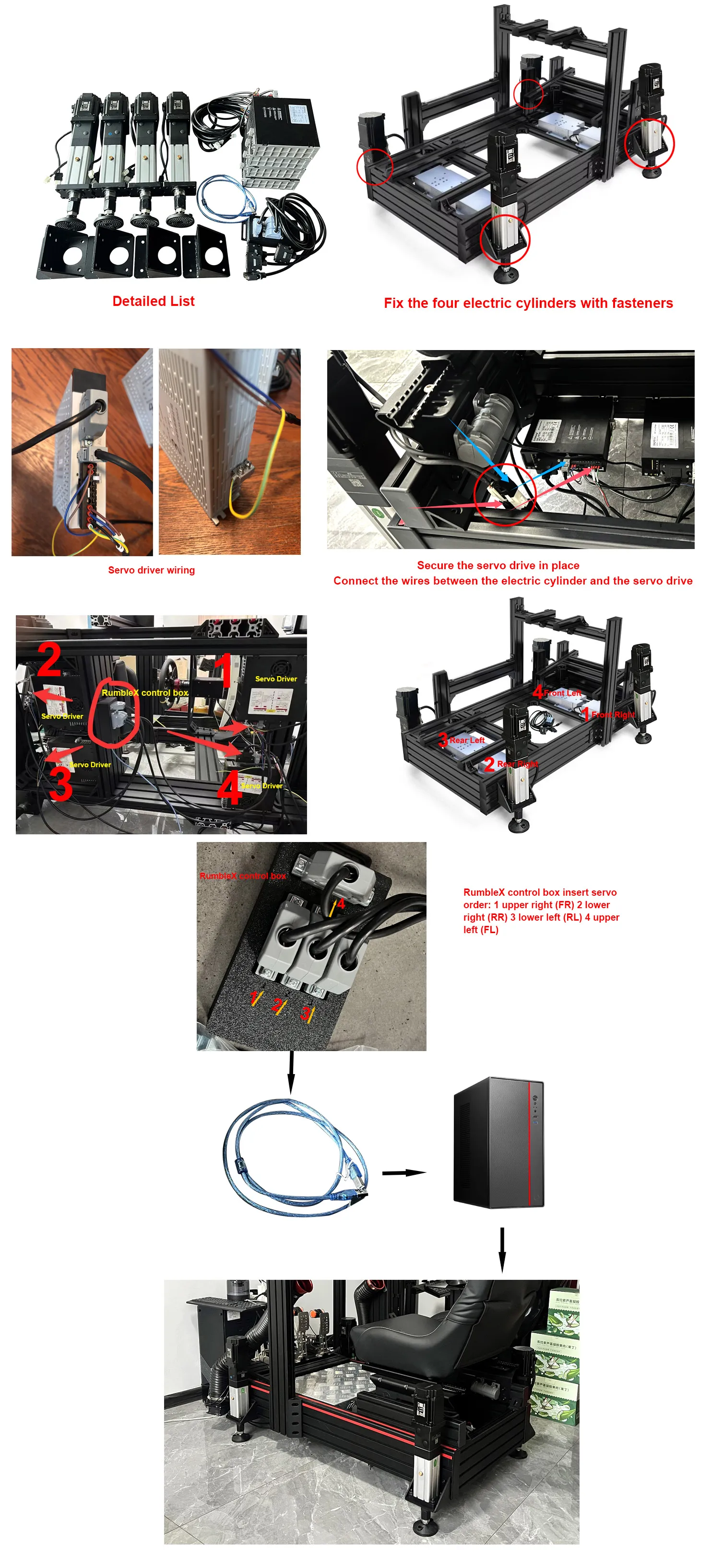

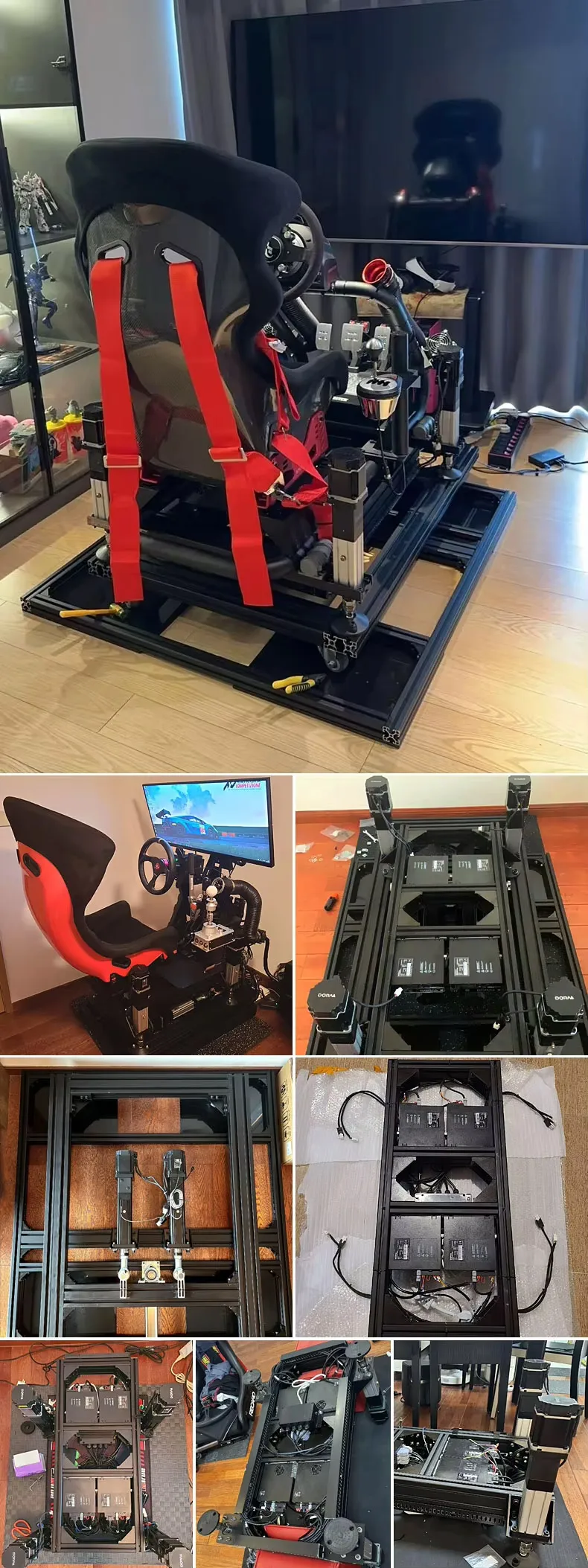

Installation Instructions
NEED NEW SERVO AND LARGE STROKE CYLINDER CAN BE CUSTOMIZED PRIVATELY

Advantage: High precision, good stability, suitable for simulating car suspension and body dynamics, after debugging, suitable for the mainstream racing games on the market, body dynamics and game screen synchronization rate is high, driving experience is better, not motion sickness.

Support software: Simtools, Flypt, and

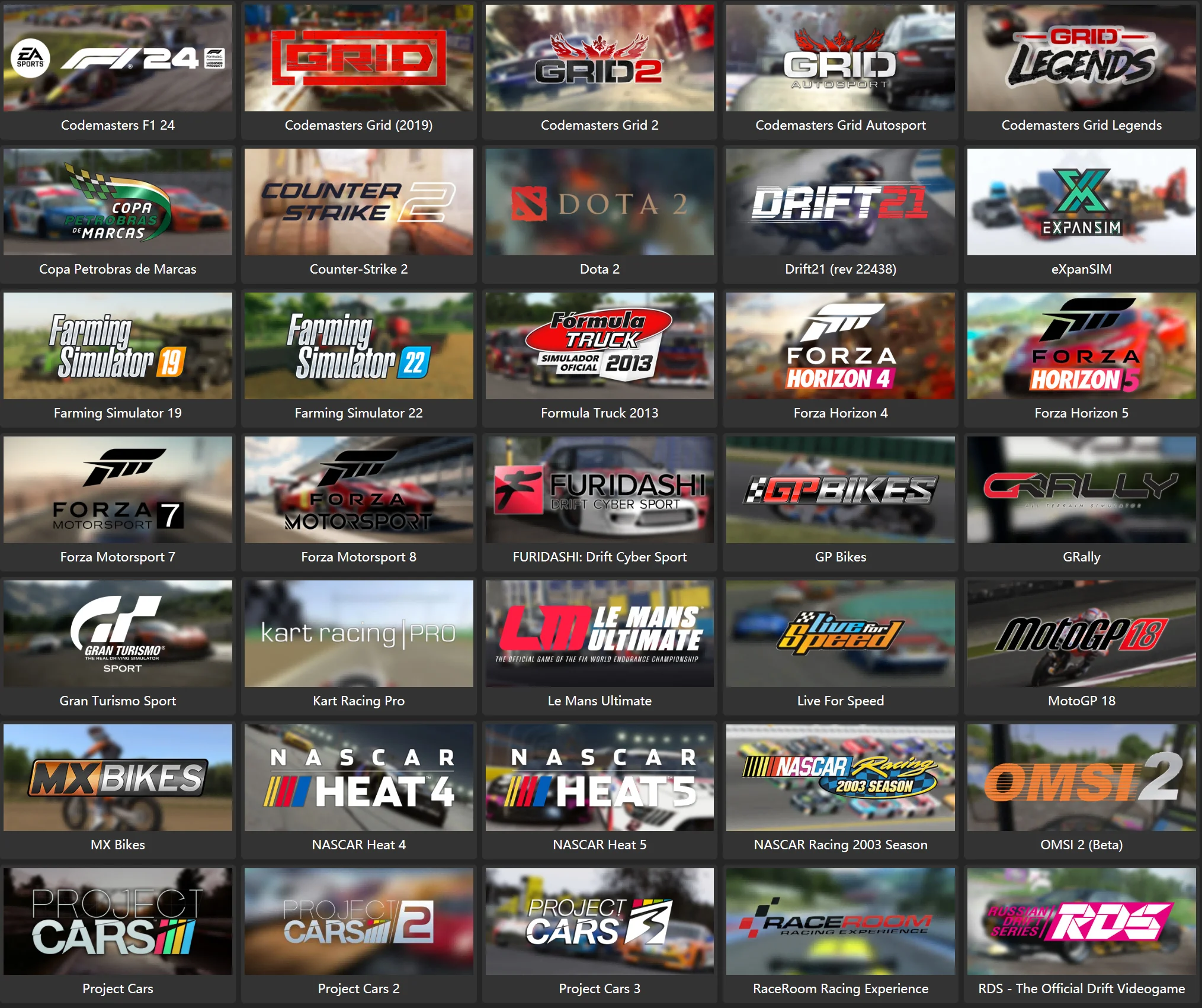

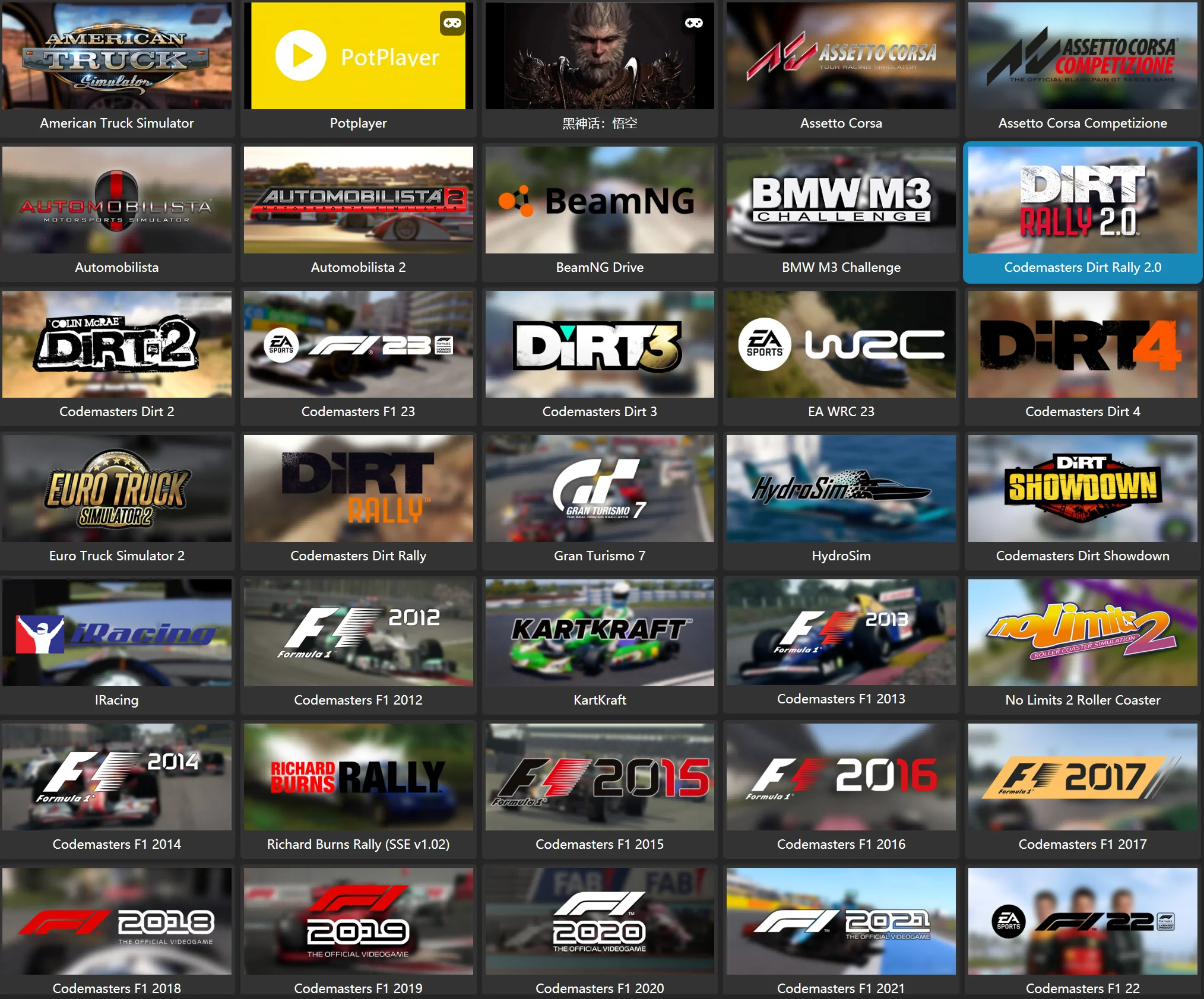

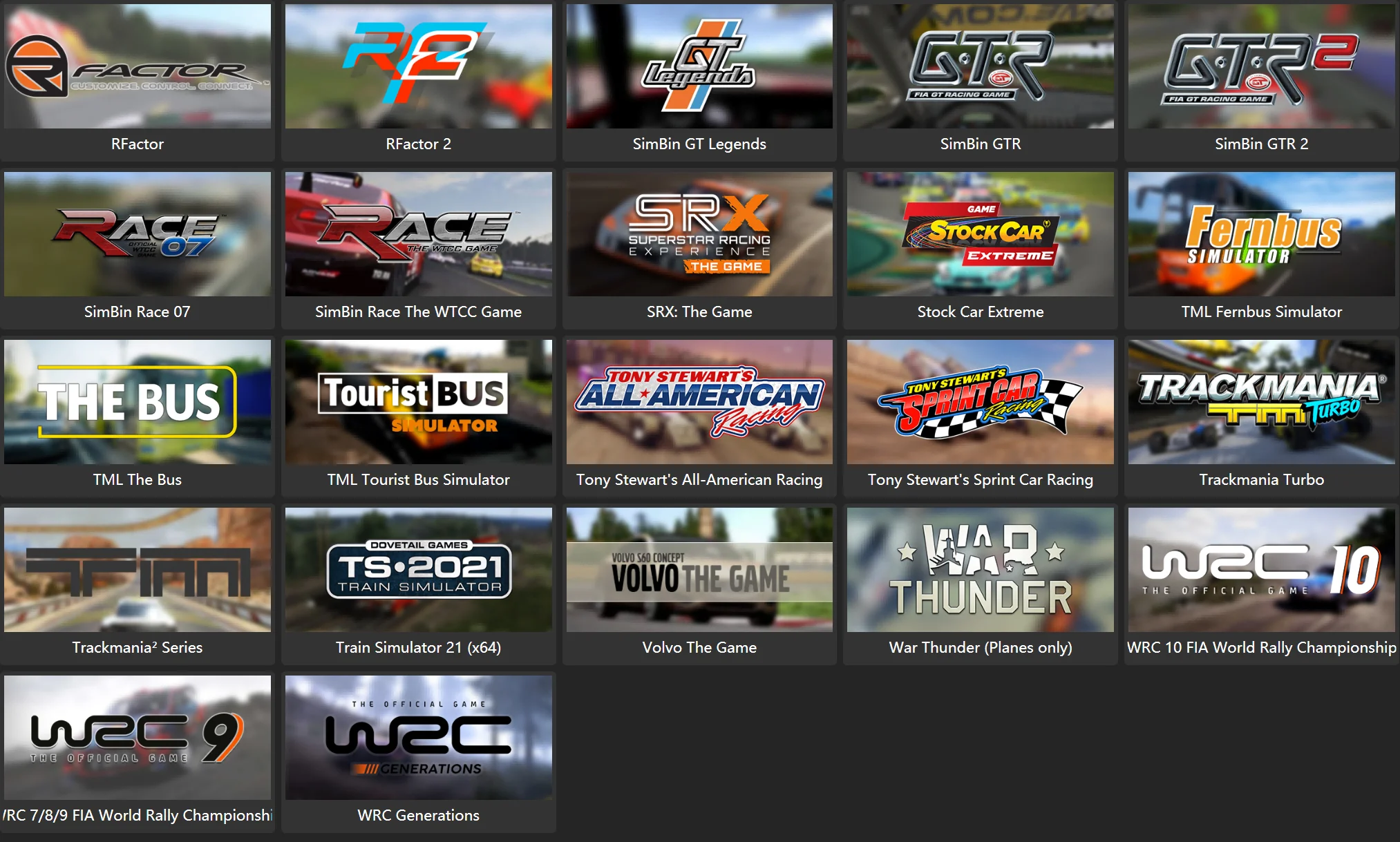

Support Gaming: Compatible with gt7，gts of PS5, and almost games of PC.
Pedal Tray
The newly designed pedal tray give the extra flexibility needed to handle a wide variety of seating positions. It covers movement in all directions including completely flipped around to have the pedals sit on the deck. Also, its configured in such a way that it will accommodate different pedals sets, and the possibility to add an adjustable heel plate which we will release soon.

Connector Plates
The uprights are the main focus point when creating a rigid frame. Steering forces are creating a moment (torque force) at the base of the uprights, even more so with the high forces Direct Drive wheels are operating. To counter these effectively, a play-free connection of the upright is essential. These sandwich plates lock the uprights firmly into place. Because they are easy to install, success guaranteed.

Side Mounts
Standard the F1 is fitted with a shifter/accessories mount, running from the uprights to the back of the rig. Can be mounted both left and right. In addition, extra 2 profiles are provided to add the possibility of multiple configurations.

Key Features:
* Base structure featuring 160x40 mm aluminium profiles. Special sandwich plates lock the uprights from any movement.
* Dashboard bracket securely fixates you Servo Drive wheel (Mige, SimuCube)
* Movable seat position (can be positioned inclined)
* Steering wheel position fully adjustable
* Pedal position fully adjustable
* Side mounting point included that can be configured in different ways
* Fanatec pedals can be mounted without additional hardware. Heusinkveld pedals can be mounted without extra materials, all bolts/nuts included.
* Heel plate can be purchased separately.
* Different sizes of spare bolts to mount seat brackets, shifters, and pedals

Included in the package:
* Aluminium profiles and mounting materials
* Bolts for mounting seats and peripherals
* Rubber feet

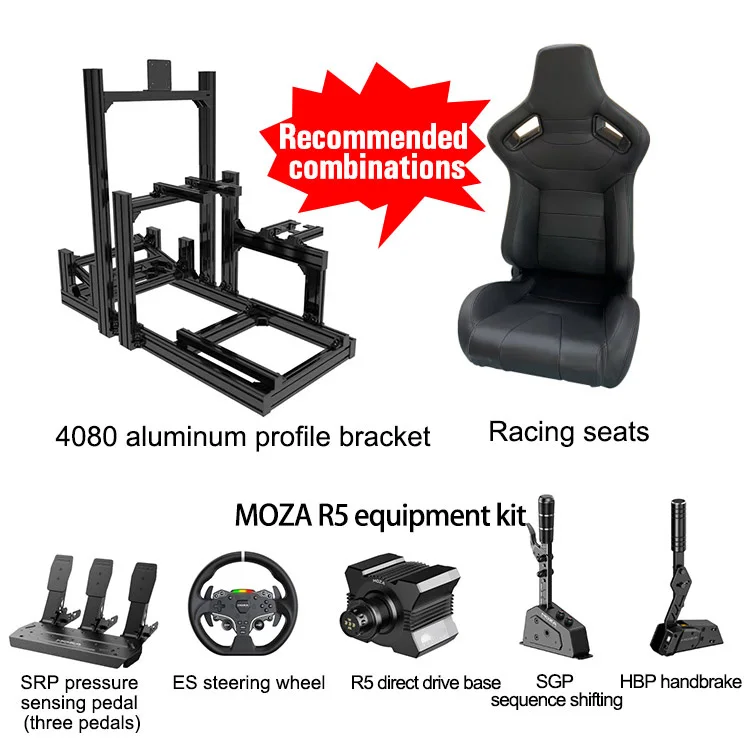

Recommend Products
Our Advantages
Sim or Real, our aluminium profile sim racing rigs are among the most sturdy sim rigs available on the market. They are often used to eliminate any flexing when racing with powerful racing wheels. Sim racing with powerful direct drive wheel bases can often make sim rigs vibrate and flex during heavy use.

If you're a fan of racing games and want a truly immersive virtual driving experience, you'll need to invest in a proper sturdy sim racing simulator. Far more than a basic wheel and pedal setup, a sim racing cockpit is a serious improvement. It takes it feel like you're really tearing down the track. There's a wide range of models available, and finding the right one will help you kick your gaming sessions into high gear.

A sim racing cockpit does more than just look cool and signal how serious you are about virtual racing. Like the seat in your car, a racing simulator seat creates a stable platform for your constant steering and pedal pressing, which allows you to move the controls, rather than vice versa. A good racing sim seat setup will also help to optimize the ergonomics and placement of those controls, keeping the sim racing wheel and pedals in a natural position for increased control.

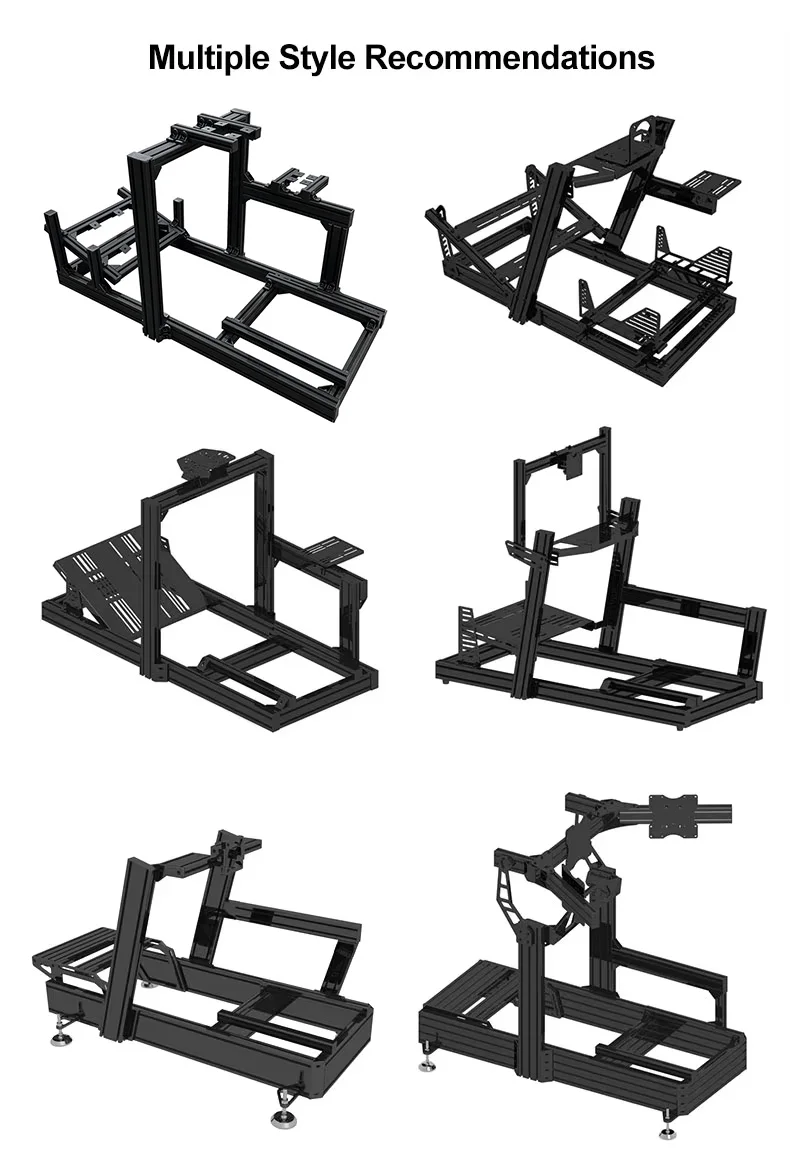

We've rounded up the best home racing sim seats for all budgets and spaces. Welcome to figure out your own design, we have professional designers to assist for your wonderful product with 3D simulation to review.
Certifications
Company Profile
FAQ
Q: What is the core difference in motion forms between 3DOF and 5DOF sim racing simulators? A: A 3DOF sim racing simulator mainly realizes three rotational movements: pitch, roll and heave, which can simulate the basic racing states such as acceleration, braking and turning. The 5DOF simulator adds surge and sway movements on the basis of the 3DOF's motion forms. It can simulate more delicate movements such as the inertia of being thrown to the side when turning and the forward and backward displacement when colliding, thus bringing a more comprehensive motion experience.

Q: Compared with 3DOF, will the 5DOF sim racing simulator have higher requirements for the use space?
A: Yes. The 5DOF simulator has more complex motion forms such as surge and sway, which require a larger range of motion space during operation. In contrast, the 3DOF simulator only focuses on rotational movements, and its motion range is relatively concentrated. Generally, a small dedicated corner space can meet the use needs.

Q: Can both 3DOF and 5DOF sim racing simulators be compatible with VR devices?
A: YES. The combination of the motion of the simulator and the visual experience of VR can greatly improve the immersion of racing simulation.

Q: What software it compatible with?
A: It support SimHub, SimTools, and Flypt software. We use industrial servo motors and industrial cylinders, offering high precision and excellent stability. It is suitable for simulating car suspension and body dynamics. After calibration and adaptation, it is compatible with the mainstream racing games on the market. The body dynamics synchronize with the game graphics at a high rate, providing a better driving experience without causing motion sickness.

Q: For commercial places such as e-sports clubs, is 3DOF or 5DOF more suitable as a sim racing simulator?
A: It depends on the positioning of the commercial venue. If the venue is positioned for mass entertainment and cost control, 3DOF is more suitable. It can meet the basic immersive needs of most customers and has lower purchase and operation costs. If the venue is aimed at professional e-racing training or high-end experience services, the 5DOF simulator is better. Its richer motion details can meet the professional needs of customers and enhance the competitiveness of the venue.

Q: Apart from the basic package of the product, what other services do you offer? A: In addition to providing the corresponding software packages, we also offer consulting services related to the simulator as well as remote software training services.

Q: What is the warranty period for the actuators? A: One-year warranty service

Q: What is the lead time?
A: 6-10 working days
